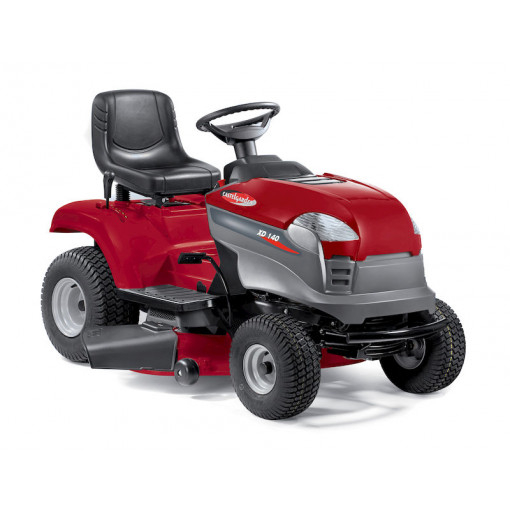

The Castelgarden XD 140 petrol lawn tractor is suitable for gardens up to 500 sqm. Powered by a single cylinder PowerBuilt 3130 AVS engine, this lawn tractor features a pedal operated, hydrostatic transmission and is provided with a 98 cm cutting deck with 7 cutting height adjustments from 25 to 80 mm and electromagnetic engagement of blades. You decide whether to side discharge grass or to perform the mulching function by inserting the mulching plug. The XD 140 is equipped with the Castelgarden ergonomic steering wheel, comfort seat and a dashboard to monitor working parameters. It includes the battery charger, the front bumper, the mulching kit and the trailer hitch.
| Engine model | PowerBuilt 3130 AVS |
|---|---|
| Displacement | 344 cm³ |
| Number of cylinders | 1 |
| Engine net power | 6,7 kW |
| Engine rpm | 2800 rpm |
| Engine cooling | Air |
| Type of fuel | Petrol |
| Fuel tank capacity | 6 L |
| Cutting method | Side-discharge, mulching |
|---|---|
| Discharge | Side |
| Cutting width | 98 cm |
| Cutting height positions | 7 Positions |
| Cutting height adjustment | Manual |
| Cutting height range | 25-80 mm |
| Number of blades | 2 |
| Blade type | Mulching blade |
| Blade engagement type | Electromagnetic clutch |
| Included tools kit | Mulching kit, trailer hitch, battery charger |
| Mulching kit | Included |
| Antiscalp wheels | Yes |
| Maximum working area | 5000 m² |
| Transmission type | Manual |
|---|---|
| Transmission method | Lever-operated |
| Number of gears | 5 forward, 1 reverse |
| Traction | Rear-wheel drive |
| Max speed | 9,7 km/h |
| Steering wheel | Castelgarden ergonomic |
|---|---|
| Seat type | Castelgarden classic |
| Seat adjustment | Screws |
| Washing link | Yes |
| Dashboard | No |
| Wheel sizes | 15"-18" |
| Hour meter | No |
| Headlights | Conventional |
| Cruise control | No |
| Battery charger | Yes |
| Bumper | Yes |
| Trailer hitch kit | Yes |
| Wheel size front | 15x5.00-6 " |
|---|---|
| Wheel size rear | 18x8.50-8 " |
| Min turning radius | 140 cm |
| Machine dimensions (LxWxH) | 1647 X 1198 X 1068 mm |
| Packaging dimensions (LxWxH) | 1700 X 1120 X 837 mm |
| Net weight | 160 kg |
| Gross weight | 202,5 kg |
| Max vibration on steering wheels | 3,33 m/s� |
|---|---|
| Max vibration on driver's seat | 0,94 m/s� |
| Noise level measured | 99 dB(A) |
| Noise level guaranteed | 100 dB(A) |
